Draft Upgrade

Other languages:

Split

Downgrade

Draft

Menu location
Draft Upgrade
Modification → Upgrade Modify → Upgrade
Workbenches
Draft, BIM
Default shortcut
U P
Introduced in version
-
See also
Draft Downgrade

Description

The Draft Upgrade command upgrades selected objects. The result depends on the number of selected objects and their type. The command can for example fuse elements and create faces. It is worth trying to upgrade a selection several times to see if a better result can be obtained. See the example in the image. Note that not all objects can be upgraded. This command is the counterpart of the Draft Downgrade command.

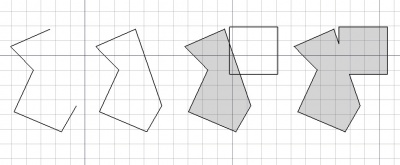

An open non-editable wire is upgraded to a closed wire, and then to a face. A closed non-editable square wire is also upgraded to a face. The two faces are then upgraded to create a compound, which is finally upgraded to a single editable Draft Wire.

Usage

Optionally select one or more objects.
There are several ways to invoke the command:
- Press the Upgrade button.
- Draft: Select the Modification → Upgrade option from the menu.
- BIM: Select the Modify → Upgrade option from the menu.
- Use the keyboard shortcut: U then P.
If you have not yet selected an object: select an object in the 3D view.

Notes

Draft Lines and Draft Wires can be joined with this command, but also with the Draft Join command or the Draft Wire command.

Scripting

To upgrade objects use the upgrade method of the Draft module.

upgrade_list = upgrade(objects, delete=False, force=None)

objects contains the objects to be upgraded. It is either a single object or a list of objects.
If delete is True the source objects are deleted.
force forces a certain way of upgrading by calling a specific internal function. It can be: "makeCompound", "closeGroupWires", "makeSolid", "closeWire", "turnToParts", "makeFusion", "makeShell", "makeFaces", "draftify", "joinFaces", "makeSketchFace", "makeWires" or "turnToLine".
upgrade_list is returned. It is a list containing two lists: a list of new objects and a list of objects to be deleted. If delete is True the second list is empty.

Example:

import FreeCAD as App
import Draft

doc = App.newDocument()

circle = Draft.make_circle(1000)
rectangle = Draft.make_rectangle(2000, 800)
doc.recompute()

add_list1, delete_list1 = Draft.upgrade([circle, rectangle], delete=False)

line1 = Draft.make_line(App.Vector(2000, 0, 0), App.Vector(2500, 1500, 0))
line2 = Draft.make_line(App.Vector(2500, 1500, 0), App.Vector(3000, -1000, 0))
doc.recompute()

add_list2, delete_list2 = Draft.upgrade([line1, line2], delete=False)

simple_wire = add_list2[0]
add_list3, delete_list3 = Draft.upgrade(simple_wire, delete=False)

closed_wire = add_list3[0]
add_list4, delete_list4 = Draft.upgrade(closed_wire, delete=False)

face = add_list4[0]
add_list5, delete_list5 = Draft.upgrade(face, delete=False)

doc.recompute()
